Troubleshooting
Electrical troubleshooting in San Diego. We find it. We fix it.

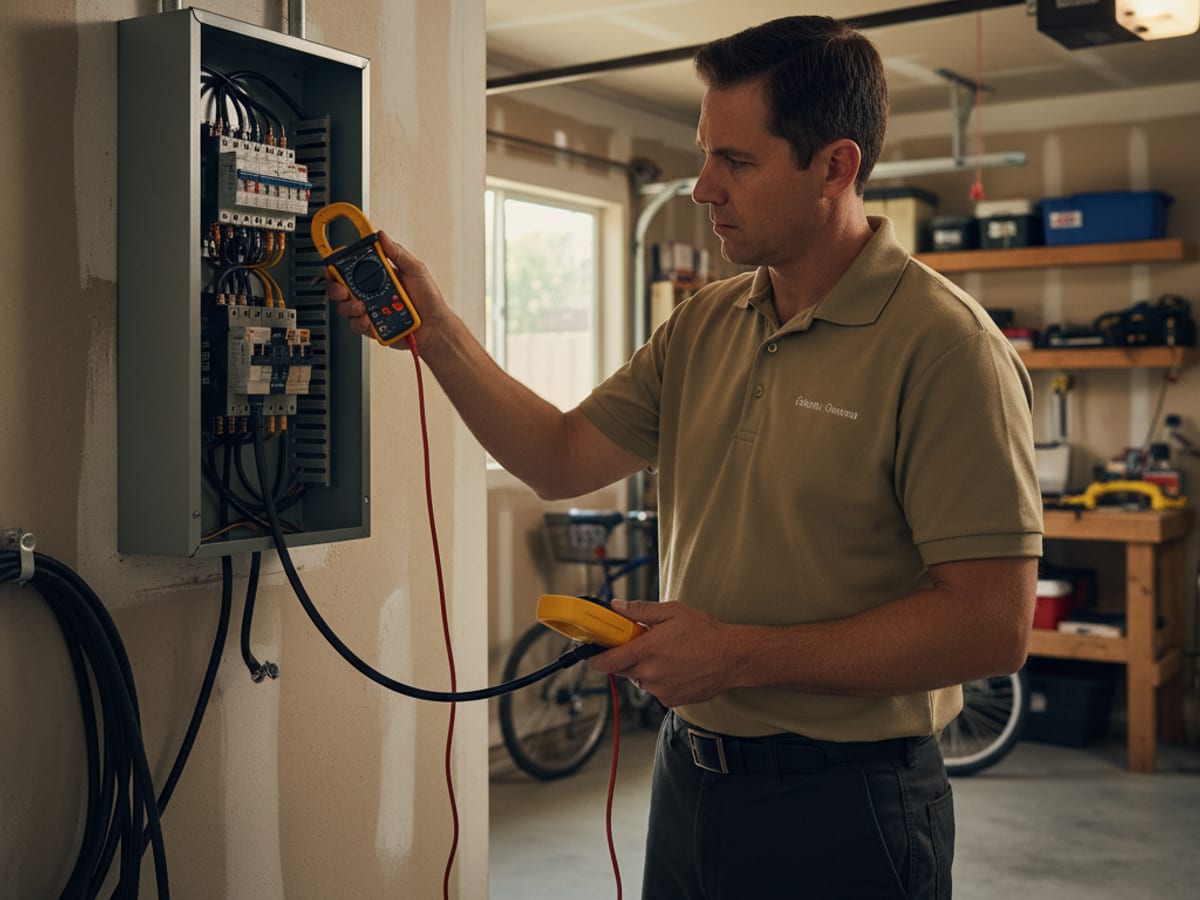

Electrical problems hide. A flickering light might be a loose connection three rooms over. A tripping breaker might be one bad outlet. We don't guess and replace parts. We use clamp meters, infrared cameras, and circuit tracers to find the actual fault, then fix it the first time.
What's included in this service?
- Tripping breaker diagnosis (overload, short, ground fault, AFCI nuisance)
- Dead outlet and circuit tracing with toner and circuit tracer
- Flickering light root-cause analysis (connection, voltage, dimmer)
- Hot-to-touch outlet, switch, or wire investigation
- Burning smell or scorch mark assessment
- Voltage drop and high-resistance neutral diagnosis
- Open neutral, open ground, and reverse polarity correction
- Infrared scan of panel, outlets, and connections (premium option)
When do you need this service?
- A breaker keeps tripping and you can't figure out why
- Lights flicker when an appliance turns on (or for no clear reason)
- An outlet is dead and you don't know what circuit it's on
- You smell burning plastic or melted insulation but can't locate it
- A switch, outlet, or wire is hot to the touch
- GFCI keeps tripping and you can't identify the bad load
- Half the house went dark but the main breaker is on
What do homeowners ask about Electrical Troubleshooting?
How much does electrical troubleshooting cost?
Our diagnostic fee is credited toward the repair if you move forward. Most repairs (bad outlet, loose neutral, failed breaker) finish in the same visit and cost $185 to $575 flat rate. Hidden faults that need wall opening or attic work cost more; we'll tell you before we go down that path.
Why does my breaker keep tripping?
Three usual causes: too much load on the circuit (overload), a short circuit (hot touching neutral or ground), or a real ground fault. AFCI breakers can also trip on arc-fault detection, which is sometimes a real problem and sometimes nuisance. We diagnose which one it is, not just reset and hope.
Is a burning smell from an outlet an emergency?
Yes. Turn off the breaker for that outlet immediately and call us. A burning smell means insulation is melting or a connection is arcing. We treat this as a same-day priority. After-hours we respond on the 24/7 emergency line.
Why do my lights flicker when the AC kicks on?
Usually a high-resistance connection somewhere on the main service or in the panel. The AC inrush draws hard, and the resistance causes a momentary voltage drop. We find the bad connection. It's almost always something we can repair without rewiring.
Can you find a dead outlet that's on no obvious circuit?
Yes. Circuit tracers and tone generators identify which breaker controls the outlet, even when the panel directory is wrong (which it usually is in older homes). We re-label the panel directory while we're at it.
Service area
Where do we offer Troubleshooting in San Diego County?
We provide troubleshooting in every city and community in San Diego County. Pick your city for local climate notes and service specifics.
Central Electrical Troubleshooting in San Diego San Diego electrical scope spans the entire spectrum: pre-1920 knob-and-tube in Old Town and Gaslamp, mid-century aluminum-wire tracts in Clairemont and Bay Park, and modern high-rise three-phase service downtown. Service upgrade demand is highest in Hillcrest, North Park, and Point Loma where 60-amp original service hits the EV-and-modern-load wall.
North Coastal Electrical Troubleshooting in Oceanside Oceanside combines older coastal stock through Fire Mountain and South O with newer inland master-plan tract through Rancho Del Oro and Ocean Hills. Military rental turnover, salt-air outdoor service equipment replacement, and panel upgrades for EV charger install drive the working scope.
North Coastal Electrical Troubleshooting in Carlsbad Carlsbad combines the Village historic stock with the master-planned La Costa, Aviara, Bressi Ranch, and Calavera Hills communities. New-build 200-amp service is standard, but EV-and-solar combined load increasingly drives sub-panel add or service expansion projects across the inventory.
North County Inland Electrical Troubleshooting in Escondido Escondido combines the hottest summer heat outside the desert with the widest housing inventory in North County Inland: Old Escondido pre-1940 stock, mid-century South Escondido tract, rural avocado-grove properties along Harmony Grove, and newer master-plan tract. Heat stress on aging service equipment plus EV charger demand drives steady panel upgrade volume.
East County Electrical Troubleshooting in El Cajon El Cajon faces the most extreme summer heat outside the desert (100-115°F peaks) combined with the oldest tract housing inventory in East County. Heat stress on aging service equipment, Federal Pacific and Zinsco panel replacement, and aluminum branch wiring remediation drive the highest weekly call volume in our service area.
South County Electrical Troubleshooting in Chula Vista Chula Vista combines the master-plan east (Otay Ranch, EastLake, Rancho del Rey) with the older west around Old Town and Third Avenue. EV-and-solar coordinated scope on master-plan tract plus insurance-driven Federal Pacific panel replacement on older west-side stock drive the working mix.
Coastal Electrical Troubleshooting in La Jolla La Jolla cliff-side homes face the harshest combination of salt spray, marine fog, and ground-fault humidity in the county. Marine-rated service equipment and stainless terminations are the working standard here.
Central Electrical Troubleshooting in Scripps Ranch Scripps Ranch original 1985-2000 master-plan service panels are reaching the EV-and-solar combined-load wall. Most replacement projects now combine 200-amp service upgrade with dedicated EV circuit and solar interconnection in a single scope.
See troubleshooting in all 89 cities and neighborhoods
Electrical Troubleshooting in Allied GardensElectrical Troubleshooting in AlpineElectrical Troubleshooting in Bankers HillElectrical Troubleshooting in Bay ParkElectrical Troubleshooting in BonitaElectrical Troubleshooting in BonsallElectrical Troubleshooting in Borrego SpringsElectrical Troubleshooting in BoulevardElectrical Troubleshooting in Camp PendletonElectrical Troubleshooting in CampoElectrical Troubleshooting in CarlsbadElectrical Troubleshooting in Carmel ValleyElectrical Troubleshooting in Casa de OroElectrical Troubleshooting in Chula VistaElectrical Troubleshooting in City HeightsElectrical Troubleshooting in ClairemontElectrical Troubleshooting in College AreaElectrical Troubleshooting in CoronadoElectrical Troubleshooting in CrestElectrical Troubleshooting in Del CerroElectrical Troubleshooting in Del MarElectrical Troubleshooting in DescansoElectrical Troubleshooting in DulzuraElectrical Troubleshooting in El CajonElectrical Troubleshooting in EncinitasElectrical Troubleshooting in EscondidoElectrical Troubleshooting in Fairbanks RanchElectrical Troubleshooting in FallbrookElectrical Troubleshooting in Golden HillElectrical Troubleshooting in Granite HillsElectrical Troubleshooting in GuatayElectrical Troubleshooting in Harbison CanyonElectrical Troubleshooting in Hidden MeadowsElectrical Troubleshooting in HillcrestElectrical Troubleshooting in Imperial BeachElectrical Troubleshooting in JacumbaElectrical Troubleshooting in JamulElectrical Troubleshooting in JulianElectrical Troubleshooting in Kearny MesaElectrical Troubleshooting in KensingtonElectrical Troubleshooting in La JollaElectrical Troubleshooting in La MesaElectrical Troubleshooting in La PresaElectrical Troubleshooting in Lake San MarcosElectrical Troubleshooting in LakesideElectrical Troubleshooting in Lemon GroveElectrical Troubleshooting in Mira MesaElectrical Troubleshooting in Mission HillsElectrical Troubleshooting in Mission ValleyElectrical Troubleshooting in Mount LagunaElectrical Troubleshooting in National CityElectrical Troubleshooting in Normal HeightsElectrical Troubleshooting in North ParkElectrical Troubleshooting in Ocean BeachElectrical Troubleshooting in OceansideElectrical Troubleshooting in Pacific BeachElectrical Troubleshooting in Palomar MountainElectrical Troubleshooting in Pine ValleyElectrical Troubleshooting in Point LomaElectrical Troubleshooting in PotreroElectrical Troubleshooting in PowayElectrical Troubleshooting in RainbowElectrical Troubleshooting in RamonaElectrical Troubleshooting in RanchitaElectrical Troubleshooting in Rancho BernardoElectrical Troubleshooting in Rancho PeñasquitosElectrical Troubleshooting in Rancho San DiegoElectrical Troubleshooting in Rancho Santa FeElectrical Troubleshooting in San CarlosElectrical Troubleshooting in San DiegoElectrical Troubleshooting in San MarcosElectrical Troubleshooting in San YsidroElectrical Troubleshooting in Santa YsabelElectrical Troubleshooting in SanteeElectrical Troubleshooting in Scripps RanchElectrical Troubleshooting in Serra MesaElectrical Troubleshooting in Shelter ValleyElectrical Troubleshooting in Solana BeachElectrical Troubleshooting in South ParkElectrical Troubleshooting in Spring ValleyElectrical Troubleshooting in TalmadgeElectrical Troubleshooting in TecateElectrical Troubleshooting in TierrasantaElectrical Troubleshooting in University CityElectrical Troubleshooting in University HeightsElectrical Troubleshooting in Valley CenterElectrical Troubleshooting in VistaElectrical Troubleshooting in Warner SpringsElectrical Troubleshooting in Winter Gardens
Serving San Diego County
Need electrical troubleshooting in San Diego County?
Call for a free quote. Most work scheduled within the week.
