You hit ‘start’ on the microwave, and suddenly the kitchen lights go dark. Or maybe your new portable AC unit keeps tripping the breaker every time it kicks on. These aren’t just annoyances; they’re clear signs that a high-power appliance is fighting for electricity it needs all to itself.

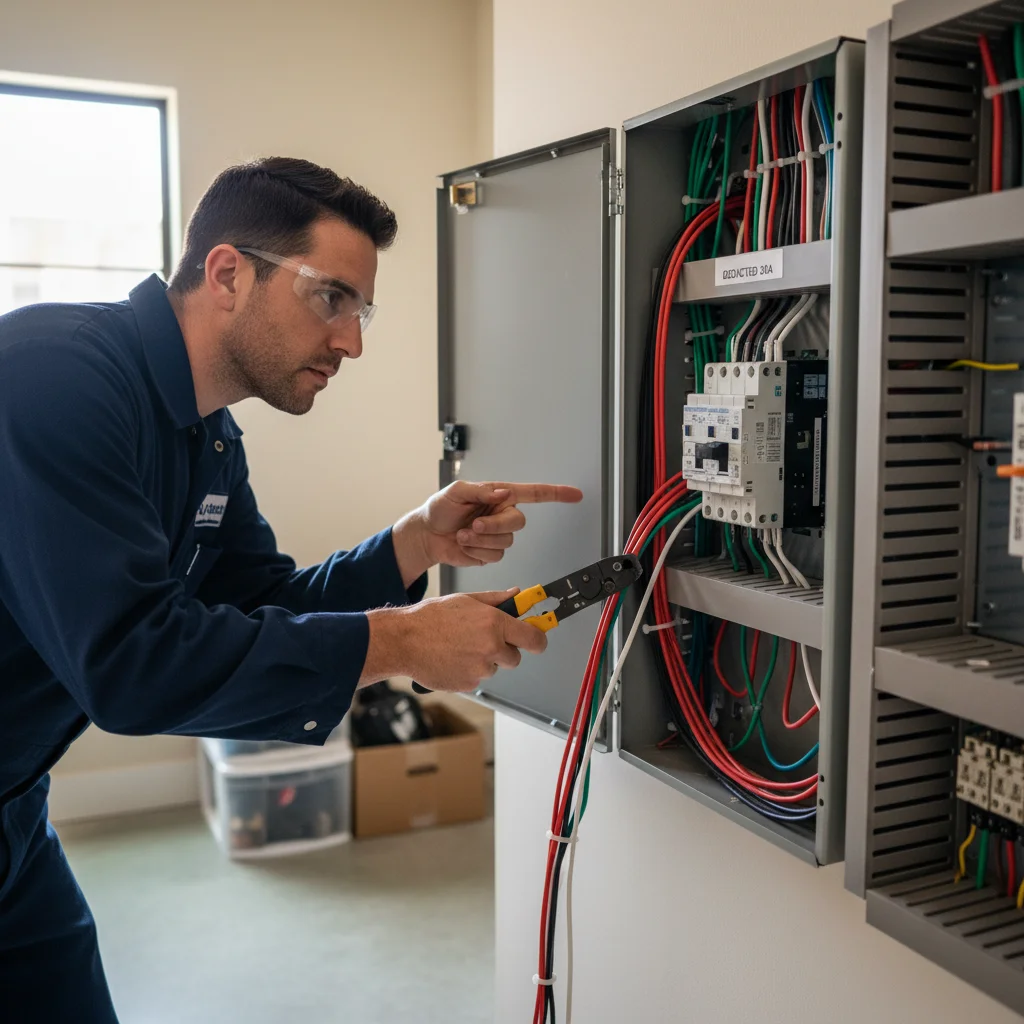

A cleanly wired electrical panel with a labeled 20-amp dedicated circuit breaker.

Many of your home’s most essential devices require a dedicated circuit to operate safely and effectively. Let’s look at what that means and which appliances are on the list.

What ‘dedicated circuit’ actually means in your panel

Think of your home’s electrical system like a tree. The main panel is the trunk, and each circuit is a branch. Most branches have smaller branches coming off them, feeding multiple outlets and lights. This is a general-purpose circuit.

A dedicated circuit is a branch with no other branches. It runs directly from a single circuit breaker in your panel to one specific appliance or outlet. Nothing else shares its power.

This setup is crucial for two main reasons:

  1. Safety: High-draw appliances can pull more current than a shared circuit is designed to handle. This overloads the wiring, creating heat and a serious fire risk. A dedicated circuit is sized specifically for the appliance it serves, ensuring the wire gauge and breaker rating are a perfect match for the load.
  2. Performance: An appliance on a dedicated electrical circuit gets a consistent, uninterrupted supply of power. It won’t cause lights to flicker when it turns on, and it won’t trip a breaker because you decided to run the toaster at the same time.

In your panel, you can often spot these circuits. They might be labeled “Dishwasher,” “Range,” or “AC.” If they aren’t labeled, a licensed electrician can map them out for you.

Microwaves, fridges, and dishwashers: what code requires

Your kitchen is the most power-hungry room in your house. That’s why the National Electrical Code (NEC), the standard for safe electrical installation in the U.S., has specific rules for it. The NEC requires at least two 20-amp “small-appliance branch circuits” to serve the countertop outlets.

But several major kitchen appliances need to go a step further with their own dedicated circuits.

Refrigerator/Freezer

A fridge may not seem like it uses a lot of power moment-to-moment, but its compressor motor creates a huge power surge every time it kicks on. This inrush of current can easily trip a shared circuit. A dedicated 20-amp circuit ensures your food stays cold and your breaker stays on.

Microwave

Modern microwaves, especially over-the-range models, are powerful. A 1,200-watt microwave pulls about 10 amps all by itself. Putting it on a shared 15-amp kitchen circuit with a coffee maker (another 8-10 amps) is a guaranteed recipe for a tripped breaker. The NEC generally requires any fixed-in-place microwave to have its own dedicated 20-amp circuit.

Dishwasher & Garbage Disposal

These are often wired together on a single dedicated circuit, which is usually acceptable under code. Both have powerful motors that draw significant current. A dishwasher also has a heating element for drying, which is another major electrical load. Giving them their own path to the panel prevents them from interfering with other kitchen essentials.

Window AC, mini-splits, and heat pumps

Here in San Diego County, air conditioning isn’t a luxury—it’s a necessity. And whether you have a small window unit or a whole-home heat pump, it’s one of the biggest electrical loads in your home.

Window AC Units

Even a small 5,000 BTU window AC can pull 4-5 amps. Larger units can easily pull 10-12 amps or more. If you plug a big AC into the same circuit as your TV and lights, you’re almost certain to experience problems. A dedicated circuit, usually 15 or 20 amps at 120 volts, is the only safe way to run one.

Ductless Mini-Splits and Central Heat Pumps

These larger systems are even more demanding. They almost always require a 240-volt dedicated circuit, with amperage ranging from 20 amps for a small single-zone mini-split to 50 amps or more for a large central system. This is not negotiable. These units cannot be plugged into a standard wall outlet and require professional hardwiring to a dedicated double-pole breaker in your panel.

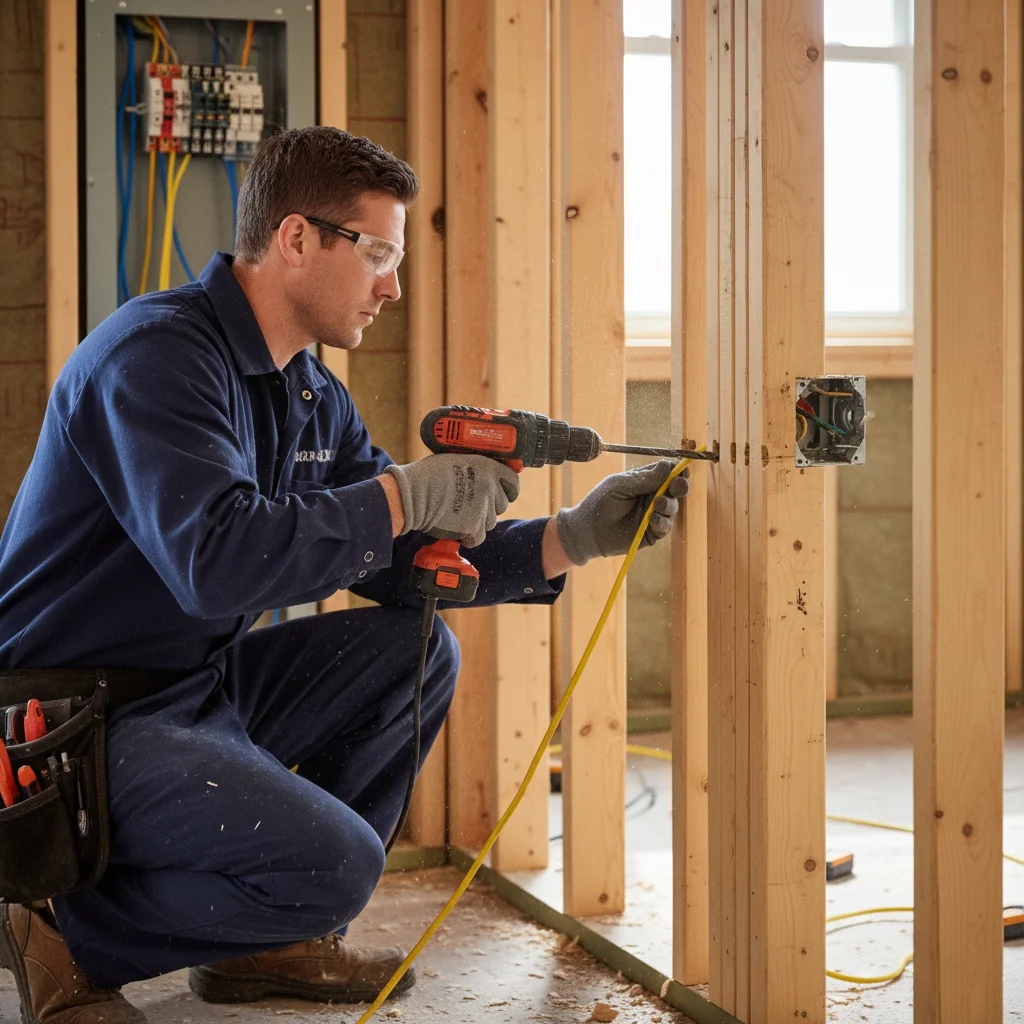

An electrician routing a yellow 12-gauge Romex wire through wall framing for a new circuit.

Garage workshops: saws, compressors, welders

Your garage can quickly become a power-problem zone, especially if you’re a woodworker, mechanic, or hobbyist. The motors in stationary power tools have massive startup power demands.

  • Table Saws and Miter Saws: A typical 10-inch contractor saw has a 15-amp motor. When the blade starts spinning and bites into a piece of hardwood, it needs every bit of that power. Sharing a circuit with garage lighting or a beer fridge is a common cause for the saw bogging down or tripping the breaker mid-cut.
  • Air Compressors: Like a refrigerator, an air compressor has a motor that cycles on and off, creating a large inrush of current each time. A medium-sized portable compressor needs a dedicated 20-amp circuit to avoid issues.
  • Welders: Electric welders are in a class of their own. Even a small 120-volt MIG welder requires a dedicated 20-amp circuit. Larger 240-volt welders need a 30, 40, or even 50-amp dedicated circuit, similar to an electric range or dryer.

If you’re setting up a workshop, planning for dedicated circuits is one of the most important first steps for safety and tool performance.

Home offices and server racks

The power demands of our homes have changed. With more people working from home in San Diego, the home office has become another power-dense area. It’s not usually one big appliance causing the problem, but the sum of many smaller ones.

A powerful desktop computer, two or three large monitors, a laser printer, speakers, and networking gear can add up to a significant continuous load. A laser printer, for instance, has a fuser that heats up, drawing a lot of power for short bursts.

If your office shares a circuit with an adjacent bedroom, just turning on your printer could trip the breaker. For serious home office setups, especially those with network-attached storage (NAS) or a server rack that runs 24/7, a dedicated 20-amp circuit is a smart investment. It ensures your critical work equipment has stable, reliable power and isolates it from other loads in the house. This is a common part of our outlet and switch installation services.

Cost to add a dedicated circuit in San Diego

The cost to run a new dedicated circuit in San Diego typically ranges from $450 to $1,200. That’s a wide range because several factors affect the final price:

  • Distance to the Panel: The farther the new outlet is from your main electrical panel, the more copper wire (Romex) and labor are required. A new circuit for a washing machine right next to the panel in the garage will be less expensive than one for a new hot tub on the far side of the backyard.
  • Panel Accessibility and Capacity: Is your panel easy to get to? More importantly, does it have an open slot for a new breaker? If the panel is full, you might need to install a smaller subpanel or consider a full panel upgrade.
  • Amperage and Voltage: A standard 120-volt, 20-amp circuit is the most common. A 240-volt circuit for a car charger or a welder will cost more due to the heavier-gauge wire and the double-pole breaker required.
  • Wall and Ceiling Finish: Running wires through an unfinished garage or basement with open studs is much easier (and cheaper) than fishing wires through finished drywall or, even more challenging, lath and plaster found in many older San Diego homes.

For a more detailed look at the numbers, check out our guide on the cost to add an outlet in San Diego.

Signs you’re sharing a circuit you shouldn’t

Your home’s electrical system will often give you warning signs when a circuit is overloaded. If you notice any of these, it’s time to investigate.

  • Frequent Breaker Trips: This is the most obvious sign. A circuit breaker is a safety device designed to shut off power when it detects an overload. If you know that turning on the toaster always kills the power to the microwave, you have a problem. If you’re constantly asking yourself “why does my breaker keep tripping?”, an overloaded circuit is the most likely culprit.
  • Dimming or Flickering Lights: Do the lights in the room dim for a second when the AC or a power tool kicks on? This is called “voltage drop.” It means a large appliance is drawing so much power that there isn’t enough left for everything else on the circuit.
  • Warm or Discolored Outlets: An outlet or switch plate that feels warm to the touch is a serious warning sign. It indicates that the wiring is overheating from too much current. Unplug everything from that outlet immediately and call an electrician.
  • Buzzing Sounds or a Burning Smell: Any unusual sounds or smells coming from an outlet, switch, or your electrical panel are signs of a dangerous condition. A burning smell can indicate melting wire insulation. Turn off the breaker for that circuit and call for emergency service.

When to call us

Adding a dedicated circuit is not a DIY project. It involves working inside your main electrical panel, which is the most dangerous part of your home’s electrical system. It also requires a deep understanding of wire gauges, breaker types, and NEC code to ensure the installation is safe and compliant.
